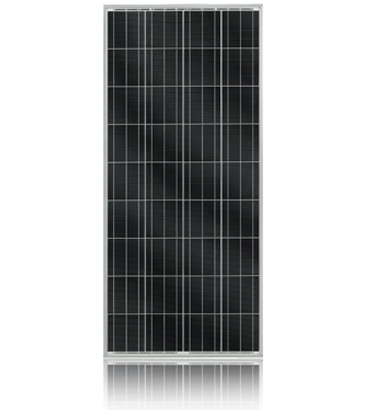

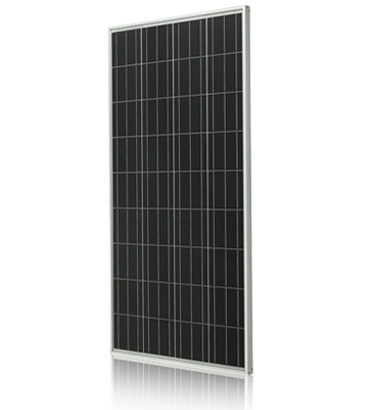

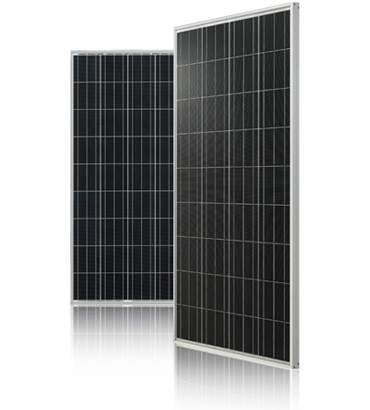

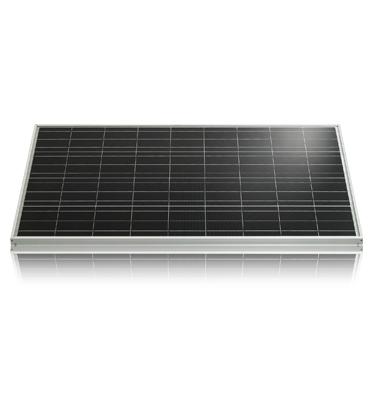

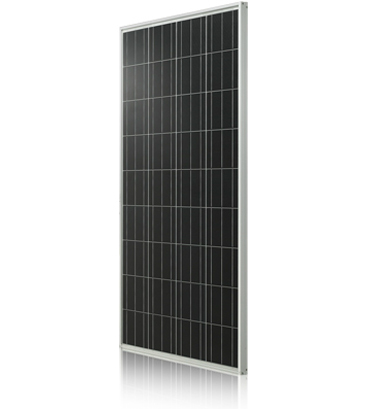

Off-grid פאנל בעל יעילות
עם ניסיון של יותר מחצי מאה בטכנולוגיות מוצרי צריכה אלקטרוניים ו25 שנה של מחקר ופיתוח מעמיק, LG גאה להציג את הפאנל off-grid החדש שלה.
LG Cell Technology
With 25 years of devoted and thorough research and development, LG has successfully developed a solar cell that is cutting edge and reliable.
100% EL Test Completed
LG’s worldwide network provides fast response to demand as well as efficient after sales services.
Superior Durability
LG solar modules withstand a maximum load of 5400 Pa, are light in weight and built with glass that is slim yet durable.
Unique Frame Design
LG solar modules are uniquely designed to drain liquid in all slopes and angles.
Warranty & Services
LG off-grid solar module offers a reliable support policy that is comprised of a 2-years product warranty, 10-years 90% power warranty and 20-years 80% power warranty.
Certified Laboratory
LG has met the core standard specifications for solar modules and became the official test laboratory certified by TÜV Rheinland and Underwriters Laboratories.
[ + ] Expand all Specs

MECHANICAL PROPERTIES

  • Cells 4 x 9
  • Cell vendor LG
  • Cell type Monocrystalline
  • Cell dimensions 156 x 156 mm2 / 6 x 6 in2
  • # of busbar 3
  • Dimensions (L x W x H) 1474 x 668 x 42 mm
    58.03 x 26.30 x 1.65 in
  • Maximum load (Pa) 5400 (113 psf)
  • Weight 12.4 ± 1.0 kg / 27.34 ± 2.2 lb
  • Connector type* Yukita, IP67
  • Junction box Yukita with 2 bypass diodes, IP65
  • Length of cables 2 x 1000 mm / 2 x 39.37 in

CERTIFICATIONS AND WARRANTY

  • Certifications IEC 61215 Ed.2, IEC 61730
  • Product warranty 2 years
  • Output warranty of Pmax 10 years – 90%
    20 years – 80%

TEMPERATURE COEFFICIENTS

  • NOCT 45.7 ± 2 °C
  • Pmpp -0.435 %/K
  • Voc -0.0728 V/K, -0.335 %/K
  • Isc 6.02 mA/K, 0.073 %/K

ELECTRICAL PROPERTIES (STC*)

  • Maximum power at STC (Pmax) 130
  • MPP voltage (Vmpp) 17.05
  • MPP current (Impp) 7.77
  • Open circuit voltage (Voc) 21.69
  • Short circuit current (Isc) 8.27
  • Module efficiency (%) 13.2
  • Operating temperature (°C) -40 ~ +90
  • Maximum system voltage (V) 1000
  • Maximum series fuse rating (A) 15
  • Power tolerance (%) -5 ~ + 5

ELECTRICAL PROPERTIES (NOCT*)

  • Maximum power (W) 95.37
  • Maximum power voltage (V) 15.34
  • Maximum power current (A) 6.22
  • Open circuit voltage (Voc) 19.88
  • Short circuit current (Isc) 6.72
  • Efficiency reduction(from 1000 W/m2 to 200 W/m2 < 4.5 %
