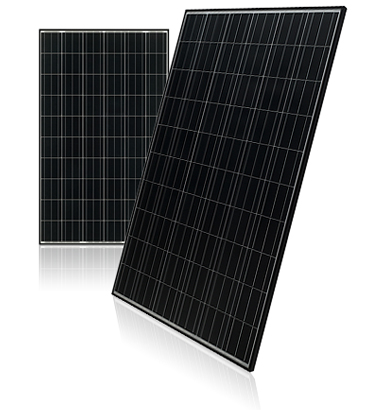

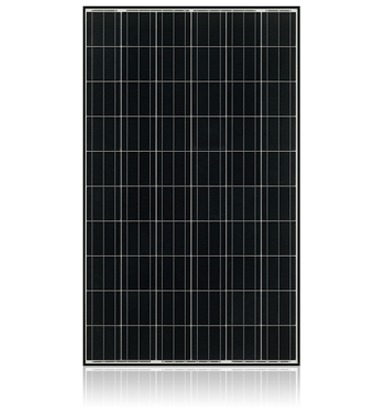

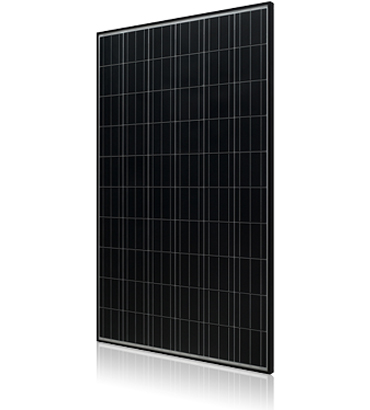

™MultiX פאנל בעל יעילות גבוהה
פאנלי ה-Multi X בעלי הנצילות הגבוהה עוצבו בכדי לעמוד בתנאי מזג האוויר קיצוניים ועדיין לתת הספק מירבי ולשמור על נצילות גבוהה.
The LG Mark of Excellence
Customers can be assured of cutting-edge technology and dependability when they see the LG logo on every cell. The LG logo reflects the high standards that have guided LG for more than 50 years.
100% EL Test Completed
All LG modules are tested by Electroluminescence inspection. The EL inspection detects cracks unseen by the naked eye.
25 Years Linear Warranty
LG always stands by its products with comprehensive warranty policies. The linear performance warranty guarantees at least 80.2% power output by the end of the 25th year.
Outstanding Durability
LG Solar modules withstand heavy loads up to 5400 Pa, are light and easy to install.
Positive Power Tolerance
LG undertakes rigorous quality testing on its solar modules to ensure customers get the stated power outputs of all modules, with a positive nominal tolerance starting at 0%.
Screw Type Frame
The Frame, with its screw type structure, minimizes torsion and ensures resistance to expanding pressure. The design of the frame allows for water drainage in all slopes and angles.
[ + ] Expand all Specs

MECHANICAL PROPERTIES

  • Cells 6 x 10
  • Cell vendor LG
  • Cell type Monocrystalline
  • Cell dimensions 156 x 156 mm2 / 6 x 6 in2
  • # of busbar 3
  • Front cover Glass, 3.2 mm
  • Frame Aluminium, anodized
  • Dimensions (L x W x H) 1632 x 986 x 42 mm
  • Maximum load (Pa) 5400 Pa
  • Weight 18.4 kg
  • Connector type* MC4, IP 67
  • Junction box IP 65 with 3 bypass diodes
  • Length of cables 2 x 1000 mm

CERTIFICATIONS AND WARRANTY

  • Certifications IEC 61215, IEC 61730-1/-2, IEC 62716/Draft C, IEC 61701, BS EN 61215, ISO 9001
  • Product warranty 10 years
  • Output warranty of Pmax 25 years linear warranty*

TEMPERATURE COEFFICIENTS

  • NOCT 45.6 ± 2 °C
  • Pmpp -0.409 %/K
  • Voc -0.319 %/K
  • Isc 0.067 %/K

ELECTRICAL PROPERTIES (STC*)

  • Maximum power at STC (Pmax) 245
  • Power tolerance (%) 0 ~ +3
  • Maximum system voltage (V) 1000
  • Maximum series fuse rating (A) 15
  • Operating temperature (°C) -40 ~ +90
  • MPP voltage (Vmpp) 30.4
  • MPP current (Impp) 8.06
  • Open circuit voltage (Voc) 37.5
  • Short circuit current (Isc) 8.74
  • Module efficiency (%) 15.2

ELECTRICAL PROPERTIES (NOCT*)

  • Maximum power (W) 181
  • Maximum power voltage (V) 27.7
  • Maximum power current (A) 6.54
  • Open circuit voltage (Voc) 34.8
  • Short circuit current (Isc) 7.09
  • Efficiency reduction(from 1000 W/m2 to 200 W/m2 < 4.5 %
